按键中断 -> 总线 -> i8259A equivalent PIC -> CPU local APIC
->IDT ISR(I8042KeyboardInterruptService)

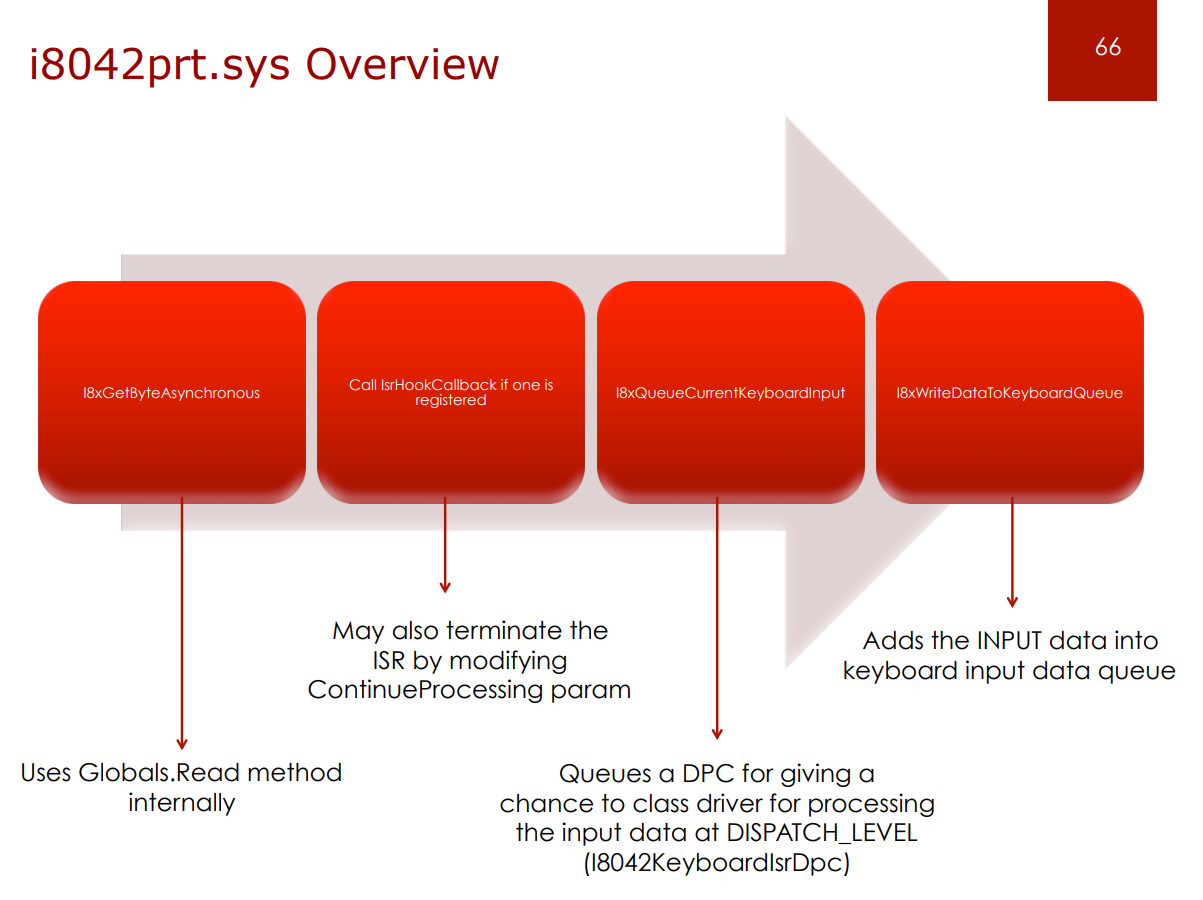

->i8042prt!I8xGetByteAsynchronous
->IsrHookCallback

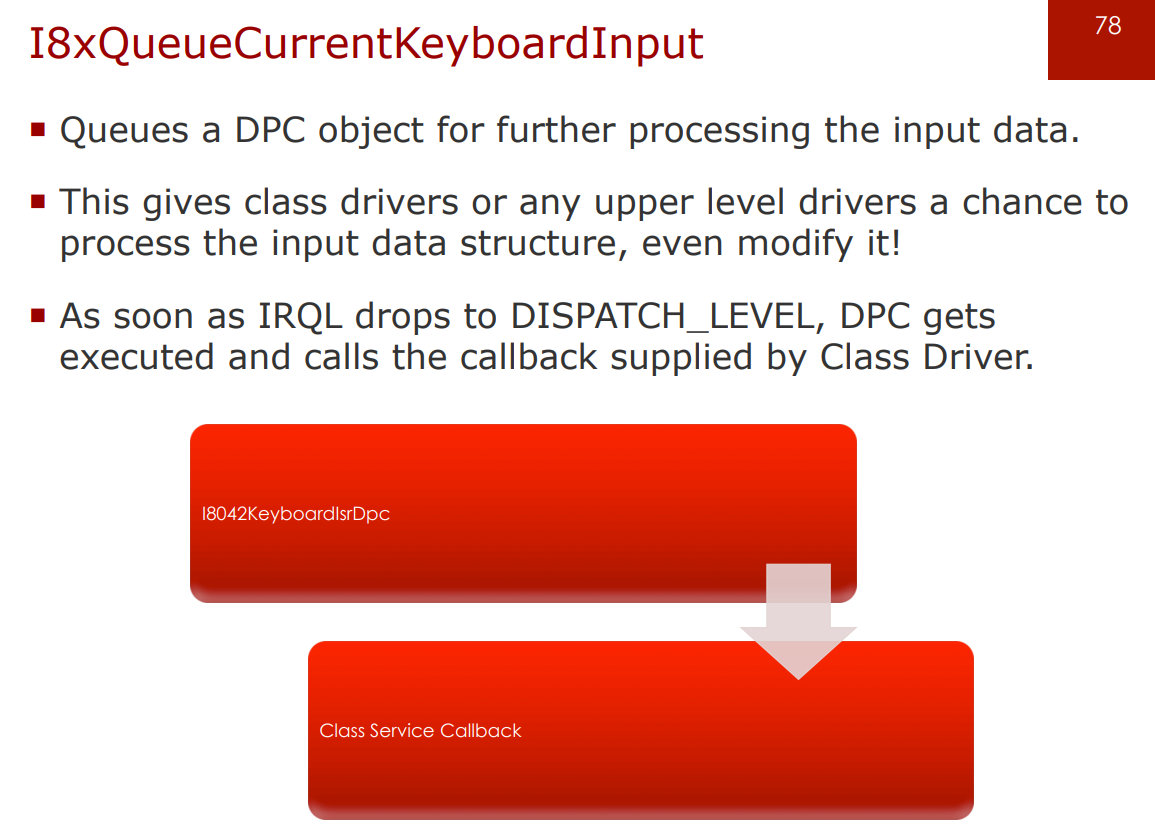

->I8xQueueCurrentKeyboardInput

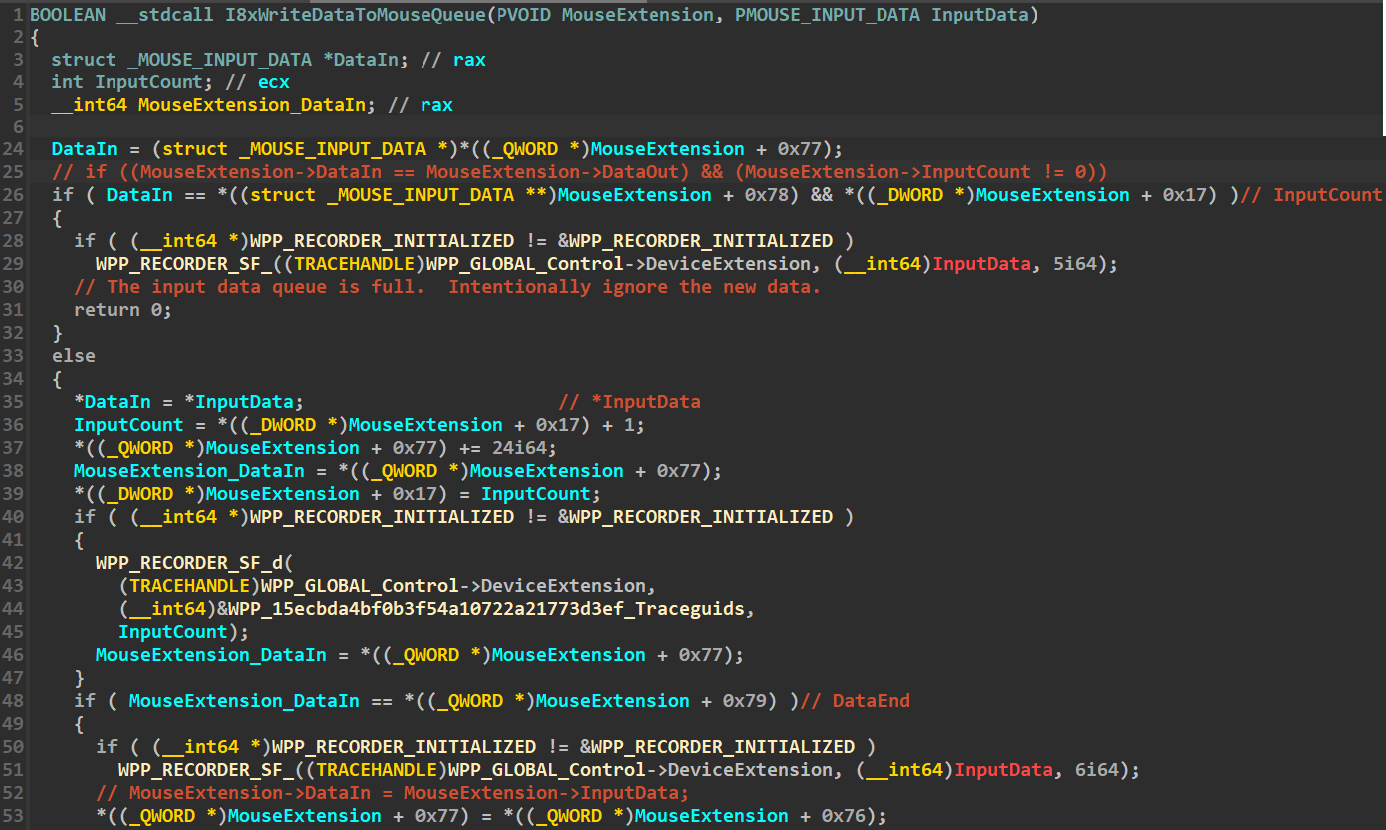

->I8xWriteDataToKeyboardQueue、KeInsertQueueDpc
->kbdclass/monclass(MouseClassServiceCallback/KeyboardClassServiceCallback)

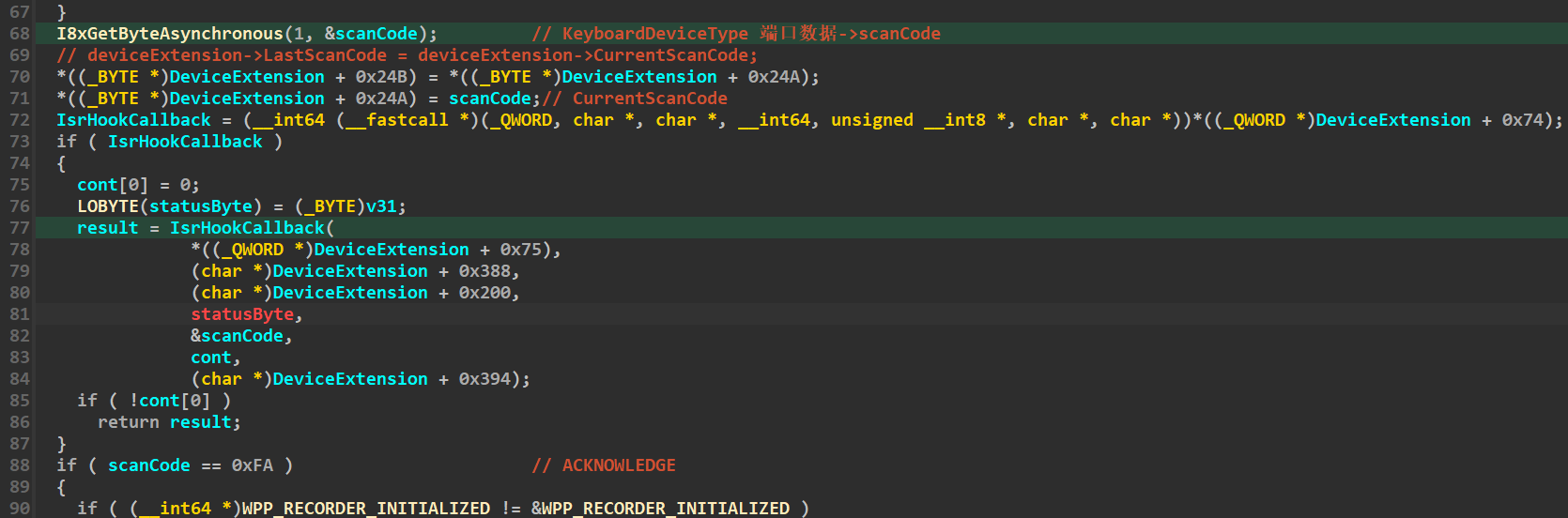

ISR I8042KeyboardInterruptService中的Hook点：
可以通过DeviceIoControl IOCTL_INTERNAL_I8042_HOOK_KEYBOARD 设置 deviceExtension->IsrHookCallback
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| typedef struct _KEYBOARD_INPUT_DATA {
USHORT UnitId;
USHORT MakeCode;
USHORT Flags;
USHORT Reserved;
ULONG ExtraInformation;
} KEYBOARD_INPUT_DATA, *PKEYBOARD_INPUT_DATA;
typedef struct _MOUSE_INPUT_DATA {
USHORT UnitId;
USHORT Flags;
__C89_NAMELESS union {
ULONG Buttons;
__C89_NAMELESS struct {
USHORT ButtonFlags;
USHORT ButtonData;
} DUMMYSTRUCTNAME;
} DUMMYUNIONNAME;
ULONG RawButtons;
LONG LastX;
LONG LastY;
ULONG ExtraInformation;
} MOUSE_INPUT_DATA, *PMOUSE_INPUT_DATA;
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
| typedef BOOLEAN
(NTAPI *PI8042_KEYBOARD_ISR)(
PVOID IsrContext,
PKEYBOARD_INPUT_DATA CurrentInput,
POUTPUT_PACKET CurrentOutput,
UCHAR StatusByte,
PUCHAR Byte,
PBOOLEAN ContinueProcessing,
PKEYBOARD_SCAN_STATE ScanState);
typedef BOOLEAN
(NTAPI *PI8042_MOUSE_ISR)(
PVOID IsrContext,
PMOUSE_INPUT_DATA CurrentInput,
POUTPUT_PACKET CurrentOutput,
UCHAR StatusByte,
PUCHAR Byte,
PBOOLEAN ContinueProcessing,
PMOUSE_STATE MouseState,
PMOUSE_RESET_SUBSTATE ResetSubState);
|
NtUserGetRawInputData执行流程：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
| 1) win32k!InputApc
2) win32k!ProcessKeyboardInput
3) win32k!StartDeviceRead
4) nt!ZwReadFile
5) nt!KiSystemService
6) nt!NtReadFile
7) nt!IopSynchronousServiceTail
8) nt!IopfCallDriver
9) kbdclass!KeyboardClassRead
a) kbdclass!KeyboardClassHandleRead
1) IDT 31h DispatchCode
2) nt!KiInterruptDispatch
3) i8042prt!I8042KeyboardInterruptService
4) i8042prt!I8xGetByteAsynchronous
5) IsrHookCallback
6) i8042prt!I8xQueueCurrentKeyboardInput
7) i8042prt!I8xWriteDataToKeyboardQueue
8) nt!KeInsertQueueDpc
1) hal!HalpDispatchInterrupt
2) hal!HalpDispatchInterrupt2ndEntry
3) nt!KiDispatchInterrupt
4) nt!KiRetireDpcList
5) i8042prt!I8042KeyboardIsrDpc
6) kbdclass!KeyboardClassServiceCallback
7) nt!IofCompleteRequest
8) nt!IopfCompleteReques
9) nt!KeInitializeApc
a) nt!KeInsertQueueApc
1) hal!HalpApcInterrupt
2) hal!HalpApcInterrupt2ndEntry
3) nt!KiDeliverApc
4) nt!IopCompleteRequest
5) nt!KeInitializeApc
6) nt!KeInsertQueueApc
1) nt!KiDeliverApc
2) nt!IopUserCompletion
3) win32k!InputApc
-> StartDeviceRead
-> KeyboardClassHandleRead
-> IRP
-> IopfCompleteReques
-> special APC
-> IopCompleteRequest
-> normal APC
-> InputApc
1) win32k!RawInputThread
2) win32k!CreateKernelEvent
3) win32k!xxxRegisterForDeviceClassNotifications
4) nt!IoRegisterPlugPlayNotification
5) nt!PiNotifyDriverCallback
6) win32k!DeviceClassNotify
7) win32k!CreateDeviceInfo
8) win32k!RequestDeviceChange
9) nt!KeSetEvent
1) win32k!RawInputThread
2) nt!KeWaitForMultipleObjects
3) win32k!ProcessDeviceChanges
4) win32k!StartDeviceRead
|
