HID键鼠协议相关

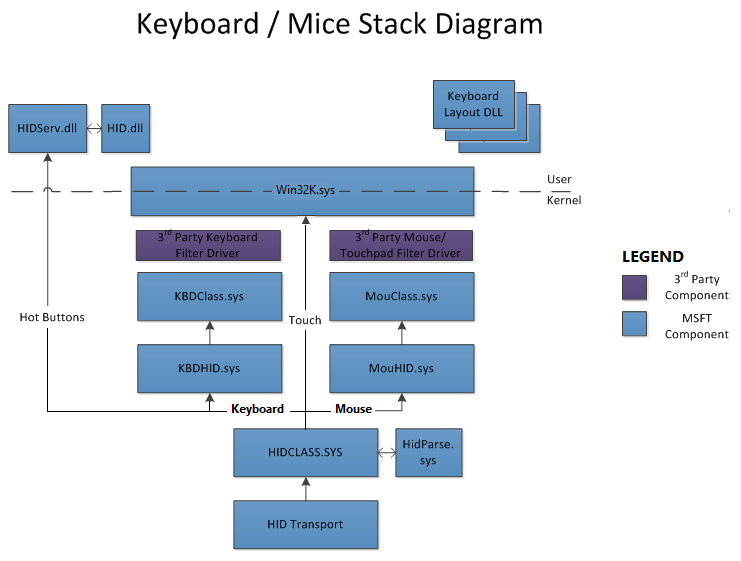

https://learn.microsoft.com/en-us/windows-hardware/drivers/hid/keyboard-and-mouse-hid-client-drivers

https://learn.microsoft.com/en-us/windows-hardware/drivers/hid/hid-transports



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

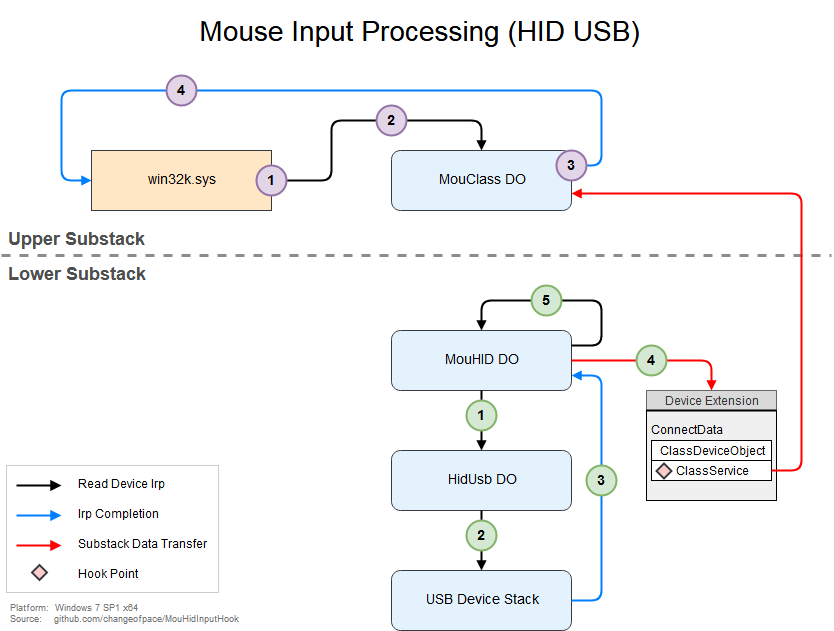

00 fffff805`434a2fd8 fffff805`486c3aa8     mouclass!MouseClassServiceCallback
01 fffff805`434a2fe0 fffff805`40824e6e     mouhid!MouHid_ReadComplete+0x758
02 fffff805`434a3080 fffff805`40824d37     nt!IopfCompleteRequest+0x11e
03 fffff805`434a3170 fffff805`4868aef5     nt!IofCompleteRequest+0x17
04 fffff805`434a31a0 fffff805`4868a7ed     HIDCLASS!HidpDistributeInterruptReport+0x3f5
05 fffff805`434a32a0 fffff805`40824e6e     HIDCLASS!HidpInterruptReadComplete+0x37d
06 fffff805`434a3340 fffff805`40824d37     nt!IopfCompleteRequest+0x11e
07 fffff805`434a3430 fffff805`41cc811a     nt!IofCompleteRequest+0x17
08 (Inline Function) --------`--------     Wdf01000!FxIrp::CompleteRequest+0x13 [minkernel\wdf\framework\shared\inc\private\km\FxIrpKm.hpp @ 75]
09 fffff805`434a3460 fffff805`41cc5bbf     Wdf01000!FxRequest::CompleteInternal+0x23a [minkernel\wdf\framework\shared\core\fxrequest.cpp @ 869]
0a (Inline Function) --------`--------     Wdf01000!FxRequest::Complete+0x31 [minkernel\wdf\framework\shared\inc\private\common\FxRequest.hpp @ 805]
0b fffff805`434a34f0 fffff805`4476cb4d     Wdf01000!imp_WdfRequestComplete+0x8f [minkernel\wdf\framework\shared\core\fxrequestapi.cpp @ 436]
0c fffff805`434a3550 fffff805`4476ca11     USBXHCI!Bulk_Transfer_CompleteCancelable+0xc9
0d fffff805`434a35b0 fffff805`4476c800     USBXHCI!Bulk_ProcessTransferEventWithED1+0x1fd
0e fffff805`434a3660 fffff805`44767101     USBXHCI!Bulk_EP_TransferEventHandler+0x10
0f fffff805`434a3690 fffff805`44766c35     USBXHCI!Endpoint_TransferEventHandler+0xb1
10 fffff805`434a36f0 fffff805`4476690c     USBXHCI!Interrupter_DeferredWorkProcessor+0x315
11 fffff805`434a37f0 fffff805`41cc38f6     USBXHCI!Interrupter_WdfEvtInterruptDpc+0xc
12 (Inline Function) --------`--------     Wdf01000!FxInterrupt::DpcHandler+0x6e [minkernel\wdf\framework\shared\irphandlers\pnp\km\interruptobjectkm.cpp @ 75]
13 fffff805`434a3820 fffff805`4083989e     Wdf01000!FxInterrupt::_InterruptDpcThunk+0xa6 [minkernel\wdf\framework\shared\irphandlers\pnp\km\interruptobjectkm.cpp @ 410]
14 fffff805`434a3860 fffff805`40838b84     nt!KiExecuteAllDpcs+0x30e
15 fffff805`434a39d0 fffff805`40a01b3e     nt!KiRetireDpcList+0x1f4
16 fffff805`434a3c60 00000000`00000000     nt!KiIdleLoop+0x9e
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
mouhid!MouHid_ReadComplete+0x758:
.text:00000001C0003A80 48 8B 8F E0 00 00 00          mov     rcx, [rdi+0E0h]
.text:00000001C0003A87 4C 8D 87 78 01 00 00          lea     r8, [rdi+178h]
.text:00000001C0003A8E 8A D8                         mov     bl, al
.text:00000001C0003A90 48 8D 97 60 01 00 00          lea     rdx, [rdi+160h]
.text:00000001C0003A97 48 8B 87 E8 00 00 00          mov     rax, [rdi+0E8h]
.text:00000001C0003A9E 4C 8D 4D EC                   lea     r9, [rbp+Consumed]
.text:00000001C0003AA2 FF 15 58 57 00 00             call    cs:__guard_dispatch_icall_fptr  ; call MouseClassServiceCallback
.text:00000001C0003AA2
.text:00000001C0003AA8 8A CB                         mov     cl, bl                          ; NewIrql
.text:00000001C0003AAA 48 FF 15 8F 56 00 00          call    cs:__imp_KeLowerIrql
.text:00000001C0003AAA
.text:00000001C0003AB1 0F 1F 44 00 00                nop     dword ptr [rax+rax+00h]
.text:00000001C0003AB6 33 DB                         xor     ebx, ebx
.text:00000001C0003AB8 38 5D 50                      cmp     [rbp+arg_8], bl
.text:00000001C0003ABB 74 46                         jz      short loc_1C0003B03


HIDCLASS!HidpDistributeInterruptReport+0x3f5:
.text:00000001C000AECC 48 8D 94 24 B0 00 00 00       lea     rdx, [rsp+0F8h+var_48]
.text:00000001C000AED4 48 89 84 24 B0 00 00 00       mov     [rsp+0F8h+var_48], rax
.text:00000001C000AEDC 48 89 50 08                   mov     [rax+8], rdx
.text:00000001C000AEE0 48 81 C1 58 FF FF FF          add     rcx, 0FFFFFFFFFFFFFF58h         ; Irp
.text:00000001C000AEE7 B2 06                         mov     dl, 6                           ; PriorityBoost
.text:00000001C000AEE9 48 FF 15 70 04 02 00          call    cs:__imp_IofCompleteRequest
.text:00000001C000AEE9
.text:00000001C000AEF0 0F 1F 44 00 00                nop     dword ptr [rax+rax+00h]
.text:00000001C000AEF5 EB A9                         jmp     short loc_1C000AEA0


HIDCLASS!HidpInterruptReadComplete+0x37d:
.text:00000001C000A7CA 0F B6 87 01 01 00 00          movzx   eax, byte ptr [rdi+101h]
.text:00000001C000A7D1 49 8B D5                      mov     rdx, r13
.text:00000001C000A7D4 45 0F B7 4C 24 14             movzx   r9d, word ptr [r12+14h]
.text:00000001C000A7DA 48 8B CB                      mov     rcx, rbx
.text:00000001C000A7DD 4D 8B 85 20 01 00 00          mov     r8, [r13+120h]
.text:00000001C000A7E4 88 44 24 20                   mov     byte ptr [rsp+98h+var_78], al
.text:00000001C000A7E8 E8 13 03 00 00                call    HidpDistributeInterruptReport
.text:00000001C000A7E8
.text:00000001C000A7ED
.text:00000001C000A7ED                               loc_1C000A7ED:                          ; CODE XREF: HidpInterruptReadComplete+2B2↑j
.text:00000001C000A7ED                                                                       ; HidpInterruptReadComplete+2BB↑j
.text:00000001C000A7ED 4C 8D 2D 14 C8 01 00          lea     r13, WPP_RECORDER_INITIALIZED
.text:00000001C000A7ED
.text:00000001C000A7F4
.text:00000001C000A7F4                               loc_1C000A7F4:                          ; CODE XREF: HidpInterruptReadComplete+2E8↑j
.text:00000001C000A7F4                                                                       ; HidpInterruptReadComplete+31F↑j
.text:00000001C000A7F4                                                                       ; HidpInterruptReadComplete+43B↓j
.text:00000001C000A7F4                                                                       ; HidpInterruptReadComplete+44D↓j
.text:00000001C000A7F4                                                                       ; HidpInterruptReadComplete+483↓j
.text:00000001C000A7F4 48 63 C6                      movsxd  rax, esi
.text:00000001C000A7F7 2B EE                         sub     ebp, esi
.text:00000001C000A7F9 4C 03 F8                      add     r15, rax
.text:00000001C000A7FC 85 ED                         test    ebp, ebp
.text:00000001C000A7FE 0F 8F 5C FE FF FF             jg      loc_1C000A660


USBXHCI!Bulk_Transfer_CompleteCancelable+0xc9:
.text:00000001C000C1A8 48 8B 15 41 5A 05 00          mov     rdx, cs:WdfFunctions_01023
.text:00000001C000C1AF 8A D8                         mov     bl, al
.text:00000001C000C1B1 44 8B 46 48                   mov     r8d, [rsi+48h]
.text:00000001C000C1B5 48 8B 0D 14 58 05 00          mov     rcx, cs:WdfDriverGlobals
.text:00000001C000C1BC 48 8B 82 38 08 00 00          mov     rax, [rdx+838h]
.text:00000001C000C1C3 48 8B 56 18                   mov     rdx, [rsi+18h]
.text:00000001C000C1C7 FF 15 CB B2 05 00             call    cs:__guard_dispatch_icall_fptr  ; call WdfFunctions_01023[0x107]
.text:00000001C000C1C7
.text:00000001C000C1CD 8A CB                         mov     cl, bl                          ; NewIrql
.text:00000001C000C1CF 48 FF 15 BA AF 05 00          call    cs:__imp_KeLowerIrql
.text:00000001C000C1CF


USBXHCI!Bulk_ProcessTransferEventWithED1+0x1fd:
.text:00000001C000C07F                               loc_1C000C07F:                          ; CODE XREF: Bulk_ProcessTransferEventWithED1+1E1↑j
.text:00000001C000C07F 45 33 C9                      xor     r9d, r9d
.text:00000001C000C082 41 83 C8 FF                   or      r8d, 0FFFFFFFFh
.text:00000001C000C086 48 8B D3                      mov     rdx, rbx
.text:00000001C000C089 48 8B CF                      mov     rcx, rdi
.text:00000001C000C08C E8 73 00 00 00                call    Bulk_Transfer_CompleteCancelable


USBXHCI!Bulk_EP_TransferEventHandler+0x10:
.text:00000001C000BE70                               Bulk_EP_TransferEventHandler proc near  ; DATA XREF: .rdata:00000001C00520A8↓o
.text:00000001C000BE70                                                                       ; .pdata:00000001C00628DC↓o
.text:00000001C000BE70 48 83 EC 28                   sub     rsp, 28h
.text:00000001C000BE74 8B 41 0C                      mov     eax, [rcx+0Ch]
.text:00000001C000BE77 A8 04                         test    al, 4
.text:00000001C000BE79 74 0B                         jz      short loc_1C000BE86
.text:00000001C000BE79
.text:00000001C000BE7B E8 14 00 00 00                call    Bulk_ProcessTransferEventWithED1
.text:00000001C000BE7B
.text:00000001C000BE80
.text:00000001C000BE80                               loc_1C000BE80:                          ; CODE XREF: Bulk_EP_TransferEventHandler+1B↓j
.text:00000001C000BE80 48 83 C4 28                   add     rsp, 28h
.text:00000001C000BE84 C3                            retn


USBXHCI!Endpoint_TransferEventHandler+0xb1:
.text:00000001C00068E0 48 8B 42 20                   mov     rax, [rdx+20h]
.text:00000001C00068E4 48 8B CF                      mov     rcx, rdi
.text:00000001C00068E7 48 8B 40 58                   mov     rax, [rax+58h]
.text:00000001C00068EB FF 15 A7 0B 06 00             call    cs:__guard_dispatch_icall_fptr
.text:00000001C00068EB
.text:00000001C00068F1
.text:00000001C00068F1                               loc_1C00068F1:                          ; CODE XREF: Endpoint_TransferEventHandler+1C693↓j
.text:00000001C00068F1                                                                       ; Endpoint_TransferEventHandler+1C6AB↓j
.text:00000001C00068F1                                                                       ; Endpoint_TransferEventHandler+1C6B6↓j
.text:00000001C00068F1                                                                       ; Endpoint_TransferEventHandler+1C6CD↓j
.text:00000001C00068F1                                                                       ; Endpoint_TransferEventHandler+1C6D8↓j
.text:00000001C00068F1                                                                       ; Endpoint_TransferEventHandler+1C81C↓j
.text:00000001C00068F1                                                                       ; Endpoint_TransferEventHandler+1CBE2↓j
.text:00000001C00068F1 48 8B 74 24 70                mov     rsi, [rsp+58h+arg_10]
.text:00000001C00068F1
.text:00000001C00068F6
.text:00000001C00068F6                               loc_1C00068F6:                          ; CODE XREF: Endpoint_TransferEventHandler+1C647↓j
.text:00000001C00068F6                                                                       ; Endpoint_TransferEventHandler+1C683↓j
.text:00000001C00068F6                                                                       ; DATA XREF: .pdata:00000001C0062414↓o
.text:00000001C00068F6                                                                       ; .pdata:00000001C0062420↓o
.text:00000001C00068F6 48 8B 5C 24 78                mov     rbx, [rsp+58h+arg_18]
.text:00000001C00068FB 48 83 C4 50                   add     rsp, 50h
.text:00000001C00068FF 5F                            pop     rdi
.text:00000001C0006900 C3                            retn


USBXHCI!Interrupter_DeferredWorkProcessor+0x315:
.text:00000001C000641C 48 8D 4D DF                   lea     rcx, [rbp+57h+var_78]
.text:00000001C0006420 E8 1B 04 00 00                call    Endpoint_TransferEventHandler
.text:00000001C0006420
.text:00000001C0006425
.text:00000001C0006425                               loc_1C0006425:                          ; CODE XREF: Interrupter_DeferredWorkProcessor+1C77F↓j
.text:00000001C0006425                                                                       ; Interrupter_DeferredWorkProcessor+1C7DE↓j
.text:00000001C0006425                                                                       ; Interrupter_DeferredWorkProcessor+1C7EB↓j
.text:00000001C0006425                                                                       ; Interrupter_DeferredWorkProcessor+1C846↓j
.text:00000001C0006425 8B 5D DB                      mov     ebx, [rbp+57h+var_7C]



.text:00000001C00060F0                               Interrupter_WdfEvtInterruptDpc proc near
.text:00000001C00060F0                                                                       ; DATA XREF: .pdata:00000001C00623E4↓o
.text:00000001C00060F0                                                                       ; Interrupter_CreateInterrupter+C3↓o
.text:00000001C00060F0 48 83 EC 28                   sub     rsp, 28h
.text:00000001C00060F4 45 33 C0                      xor     r8d, r8d
.text:00000001C00060F7 E8 14 00 00 00                call    Interrupter_DeferredWorkProcessor
.text:00000001C00060F7
.text:00000001C00060FC 48 83 C4 28                   add     rsp, 28h
.text:00000001C0006100 C3                            retn
.text:00000001C0006100
.text:00000001C0006100                               ; ---------------------------------------------------------------------------
.text:00000001C0006101 CC                            db 0CCh
.text:00000001C0006101                               Interrupter_WdfEvtInterruptDpc endp
内核
#分页 #内核 #驱动 #键鼠
